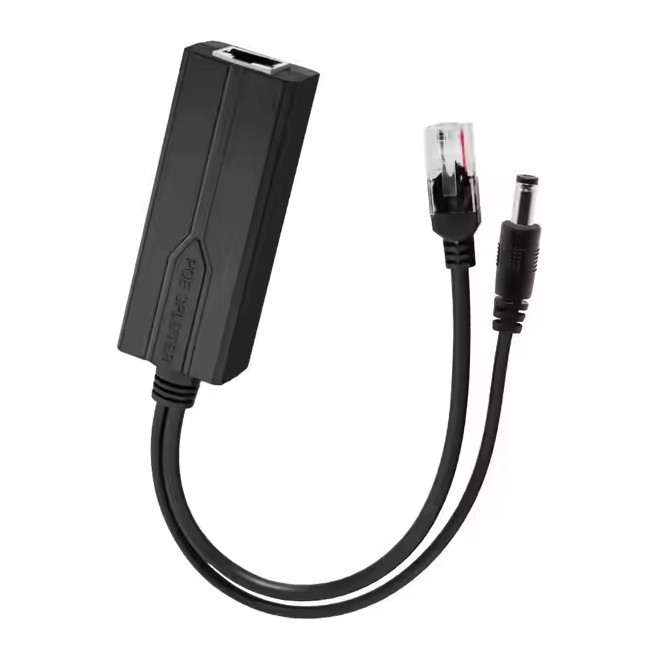

48V To 12V Standard POE Splitter
Details
The 48V to 12V Standard PoE Splitte is an essential inline power converter engineered to bridge standard IEEE 802.3af/at Power over Ethernet networks with legacy non-PoE network devices.
Category
POE Spliter
Share to
Description

Overview



The 48V to 12V Standard PoE Splitte is an essential inline power converter engineered to bridge standard IEEE 802.3af/at Power over Ethernet networks with legacy non-PoE network devices.



Technical Parameters



Parameter

Specification

PoE Input Voltage

DC 44V–57V, IEEE 802.3af/at & 48V passive PoE compatible

Data Rate

10/100Mbps Auto-Negotiation RJ45

PoE Pin Mode

Dual Mode: Mode A & Mode B

Conversion Efficiency

≥86%

Transmission Distance

Up to 100m via Cat5e/Cat6 cable

Compatibility

IP cameras, access control, VoIP, Wi-Fi APs

Protection

1.5kV isolation, <120mVp-p ripple noise

Operating Temperature

-20°C to +65°C

Installation

Plug-and-play, 82g compact design, LED indicator



1



Key Features



MTBF > 100,000 Hours (at 25°C): Field-tested for continuous 24/7 industrial deployment.

Auto-Recovery Overload Protection: Cuts power during short circuits or over-current events and automatically resumes operation after fault clearance.

Synchronous DC-DC Rectification: Reduces operating temperatures by 30% versus linear regulators.

UL94V-0 Fire-Retardant Housing: Flame-extinguishing ABS+PC alloy casing prevents combustion spread during severe electrical faults.



Customization & OEM Options



Tailored Cabling & Connectors: Customizable DC lead lengths (10–50cm) and plug formats (5.5x2.1mm, 5.5x2.5mm, 3.5x1.35mm, or terminal blocks).

Permanent Branding: High-resolution laser etching or silk-screen logos printed directly onto housing and rating labels.

Flexible Packaging: Industrial bulk cartons (50–100 units/box) or custom retail blister packaging.

Sample Turnaround: Fully functional OEM evaluation units engineered and shipped within 7 business days.



Quality Control



Pre-Mounting IC Logic Testing: Automated code and logic verification for controller ICs before board placement.

100% Full-Load Thermal Burn-In: Every PCBA undergoes 4 hours of continuous full-load thermal stress testing before enclosure assembly.

Automated ATE Parameter Verification: 100% finished-unit testing for output voltage stability, ripple noise, and polarity correctness.



Supply Capability



120,000 Units/Month Production Capacity: Scalable factory throughput backed by safety buffer stock for standard SKUs.

Lead Times: Standard samples dispatch in 24–48 hours; 5,000-unit bulk orders ship within 12–15 business days.

Complete Freight Specifications: Standard master carton contains 100 units (Gross Weight: 9.5 kg; Dimensions: 42 x 32 x 28 cm).

2-Year Warranty: Manufacturer-backed warranty covering material and functional defects with zero-cost replacements.

Expedited RMA Clearance: Verified defective units qualify for immediate advance replacement dispatch or account credit.



Compliance



IEEE 802.3af/u Compliance: Fully interoperable with standard PoE switches and injectors (10/100Base-TX).

CE & FCC Class B Certified: Verified compliance with North American and European electromagnetic emissions standards.

IEC/EN 62368-1 Certified: Meets global safety standards for audio/video and ICT electronics.

RoHS 2.0, REACH & WEEE Compliant: Non-toxic, lead-free materials conforming to worldwide environmental regulations.



FAQ



Q: Can the DC output be customized to 5V or 9V instead of the standard 12V for other legacy device compatibility?

A: Yes, 5V or 9V output variants are available as OEM customization at the same 500-unit MOQ tier, using the same PCBA platform with a modified DC-DC feedback reference.

Q: How was the MTBF >100,000 hours figure calculated?

A: The MTBF figure is calculated using the MIL-HDBK-217F predictive reliability model at 25°C ambient, cross-referenced against accelerated life testing on a sample batch.

Q: Can this PoE splitter work with both IEEE PoE switches and 48V passive PoE systems?

A: Yes. The splitter supports DC 44V–57V input and is compatible with IEEE 802.3af/at PoE switches, injectors, and 48V passive PoE networks through Mode A and Mode B pin configurations.

Q: What happens if a batch fails output voltage stability or ripple noise testing after arrival?

A: Buyers must submit a claim with test evidence within 15 days of port arrival, after which a credit note or free replacement is issued within 10 business days.

Q: What is the trigger threshold and recovery delay for the auto-recovery overload protection?

A: The protection triggers at 130% of rated load (approximately 1.56A) and automatically resumes normal output within 3-5 seconds after the fault condition is cleared.
